Cleveland

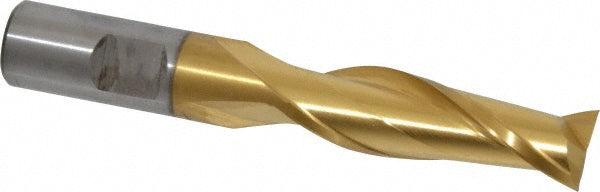

5/8" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C39091

MFR# C39091Series HG-2

$80.57List $103.33 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C39091 is a 5/8 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2 length of cut, 4-5/8 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in2

Length of cut range2.0000+

Length typeLong

Mill diameter in5/8

Number of flutes2

Overall length in4-5/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
