7/16" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C39115

Cleveland

7/16" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C39115

MFR# C39115Series HG-2

$53.18List $68.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes2
MaterialHigh Speed Steel
CoatingTiCN

Description

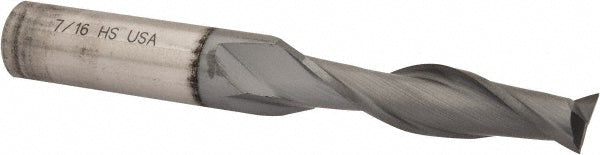

The Cleveland C39115 is a 7/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/4 length of cut, 3-1/4 overall length. Series HG-2.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/4
Length of cut range1.5000 - 2.0000
Length typeLong
Mill diameter in7/16
Number of flutes2
Overall length in3-1/4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
