Cleveland

1/2" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C39117

MFR# C39117Series HG-2

$59.98List $76.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes2

MaterialHigh Speed Steel

CoatingTiCN

Description

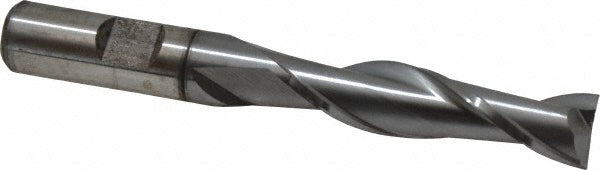

The Cleveland C39117 is a 1/2 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2 length of cut, 4 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in2

Length of cut range2.0000+

Length typeLong

Mill diameter in1/2

Number of flutes2

Overall length in4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
