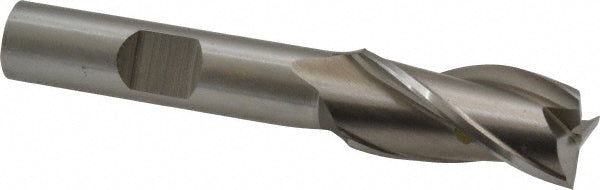

1/2" 3-Flute High Speed Steel Square End Mill - Cleveland C39650

Cleveland

1/2" 3-Flute High Speed Steel Square End Mill - Cleveland C39650

MFR# C39650Series HG-3

$62.28List $78.50 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialHigh Speed Steel

Description

The Cleveland C39650 is a 1/2 3-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1 length of cut, 2-11/16 overall length. Series HG-3.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in1/2
Number of flutes3
Overall length in2-11/16
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
