Cleveland

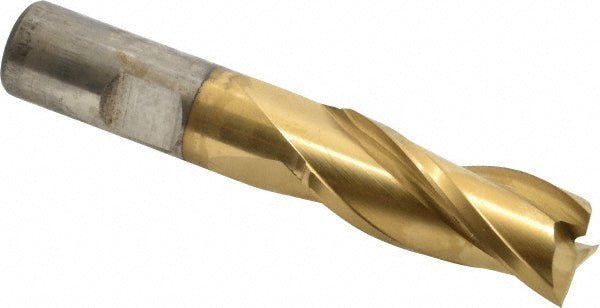

11/16" 3-Flute High Speed Steel Square End Mill, TiN - Cleveland C39685

MFR# C39685Series HG-3

$92.78List $119.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter11/16

Flutes3

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C39685 is a 11/16 3-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-5/8 length of cut, 3-1/4 overall length. Series HG-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in11/16

Number of flutes3

Overall length in3-1/4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
