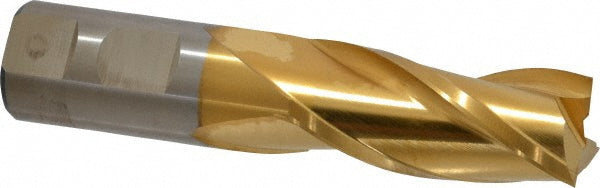

7/8" 3-Flute High Speed Steel Square End Mill, TiN - Cleveland C39688

Cleveland

7/8" 3-Flute High Speed Steel Square End Mill, TiN - Cleveland C39688

MFR# C39688Series HG-3

$104.29List $133.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/8
Flutes3
MaterialHigh Speed Steel
CoatingTiN

Description

The Cleveland C39688 is a 7/8 3-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-7/8 length of cut, 4-1/8 overall length. Series HG-3.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-7/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in7/8
Number of flutes3
Overall length in4-1/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in7/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
