Cleveland

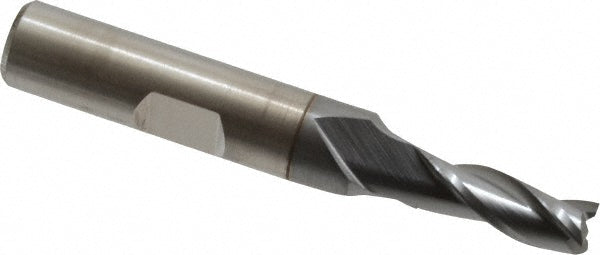

1/4" 3-Flute High Speed Steel Square End Mill, TiCN - Cleveland C39704

MFR# C39704Series HG-3

$44.70List $57.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C39704 is a 1/4 3-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 5/8 length of cut, 2-7/16 overall length. Series HG-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Length typeRegular

Mill diameter in1/4

Number of flutes3

Overall length in2-7/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
