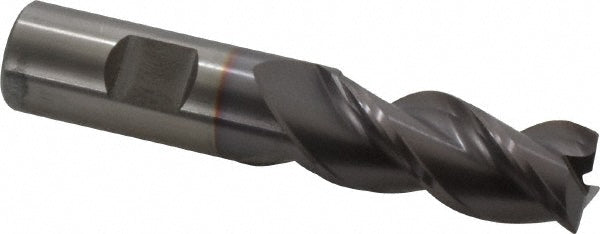

3/4" 3-Flute Powdered Metal Corner Radius End Mill, TiCN - Cleveland C40347

Cleveland

3/4" 3-Flute Powdered Metal Corner Radius End Mill, TiCN - Cleveland C40347

MFR# C40347Series PM-539R

$158.66List $203.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialPowdered Metal
CoatingTiCN

Description

The Cleveland C40347 is a 3/4 3-flute Powdered Metal corner radius end mill with a TiCN finish for longer tool life. Suited for non-ferrous metal. 1-5/8 length of cut, 3-7/8 overall length. Series PM-539R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialPowdered Metal
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleHigh
Length of cut in1-5/8
Length typeStandard
Material applicationNon-Ferrous Metal
Material removal typeFinishing
Mill diameter in3/4
Number of flutes3
Overall length in3-7/8
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/4
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
