Cleveland

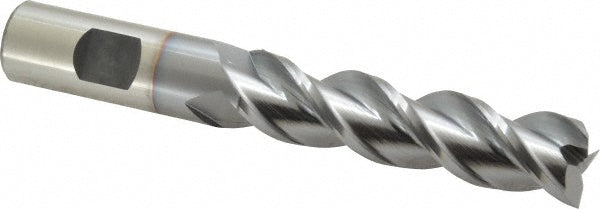

3/4" 3-Flute Powdered Metal Square End Mill, TiCN - Cleveland C40351

MFR# C40351Series PM-539R

$192.15List $246.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialPowdered Metal

CoatingTiCN

Description

The Cleveland C40351 is a 3/4 3-flute Powdered Metal square end mill. Suited for non-ferrous metal. 3 length of cut, 5-1/4 overall length. Series PM-539R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialPowdered Metal

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle42

Length of cut in3

Length of cut range2.0000+

Length typeRegular

Mill diameter in3/4

Number of flutes3

Overall length in5-1/4

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/4

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
