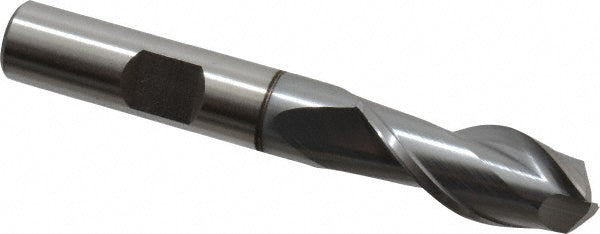

7/16" 2-Flute High Speed Steel Drill Mill End Mill, TiCN - Cleveland C40522

Cleveland

7/16" 2-Flute High Speed Steel Drill Mill End Mill, TiCN - Cleveland C40522

MFR# C40522

$119.05List $152.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes2
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C40522 is a 7/16 2-flute High Speed Steel drill mills end mill with a TiCN finish for longer tool life. 13/16 length of cut, 2-1/2 overall length.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Flute directionRight Hand
Helix angle30
Length of cut in13/16
Mill diameter in7/16
Number of flutes2
Overall length in2-1/2
Point angle90
Shank diameter in3/8
