Cleveland

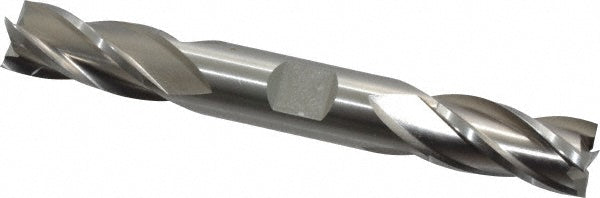

1/2" 4-Flute High Speed Steel Square End Mill - Cleveland C41216

MFR# C41216Series HD-4C

$60.96List $78.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C41216 is a 1/2 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1 length of cut, 4-1/2 overall length. Series HD-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeRegular

Mill diameter in1/2

Number of flutes4

Overall length in4-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
