Cleveland

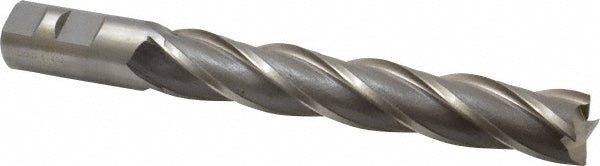

1" 4-Flute High Speed Steel Square End Mill - Cleveland C41404

MFR# C41404Series HG-4C

$236.01List $302.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C41404 is a 1 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 6 length of cut, 8-1/2 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in6

Length of cut range2.0000+

Length typeExtra Long

Mill diameter in1

Number of flutes4

Overall length in8-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
