Cleveland

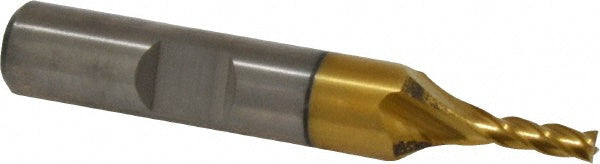

1/8" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C41520

MFR# C41520Series HG-4C

$35.92List $46.07 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C41520 is a 1/8 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 3/8 length of cut, 2-5/16 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Length typeRegular

Mill diameter in1/8

Number of flutes4

Overall length in2-5/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
