Cleveland

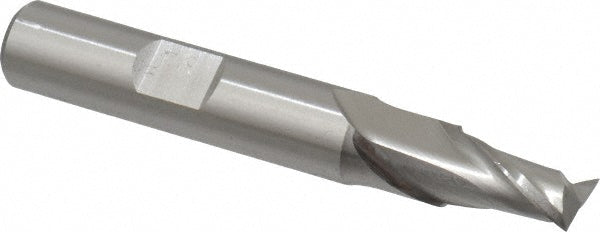

5/16" 2-Flute High Speed Steel Square End Mill - Cleveland C41609

MFR# C41609Series HG-2

$25.50List $32.71 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialHigh Speed Steel

Description

The Cleveland C41609 is a 5/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 9/16 length of cut, 2-1/2 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in9/16

Length of cut range0.5000 - 0.6000

Length typeRegular

Mill diameter in5/16

Number of flutes2

Overall length in2-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
