Cleveland

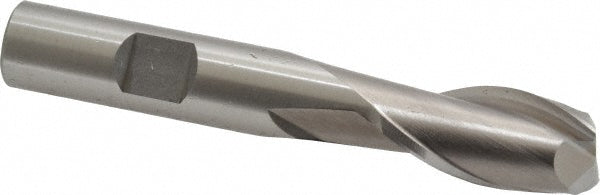

9/16" 2-Flute High Speed Steel Square End Mill - Cleveland C41620
MFR# C41620Series HG-2
$55.04List $70.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/16
Flutes2
MaterialHigh Speed Steel
Description
The Cleveland C41620 is a 9/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/8 length of cut, 3-3/8 overall length. Series HG-2.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in9/16
Number of flutes2
Overall length in3-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
