Cleveland
13/16" 2-Flute High Speed Steel Square End Mill - Cleveland C41632
MFR# C41632Series HG-2
$87.09List $111.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter13/16
Flutes2
MaterialHigh Speed Steel
Description

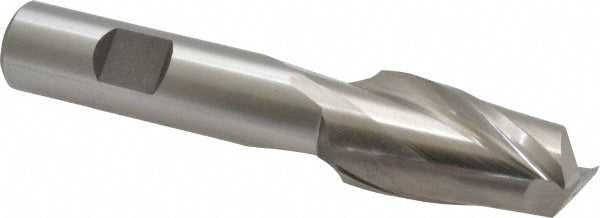

The Cleveland C41632 is a 13/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/2 length of cut, 4 overall length. Series HG-2.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in13/16
Number of flutes2
Overall length in4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in5/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
