Cleveland

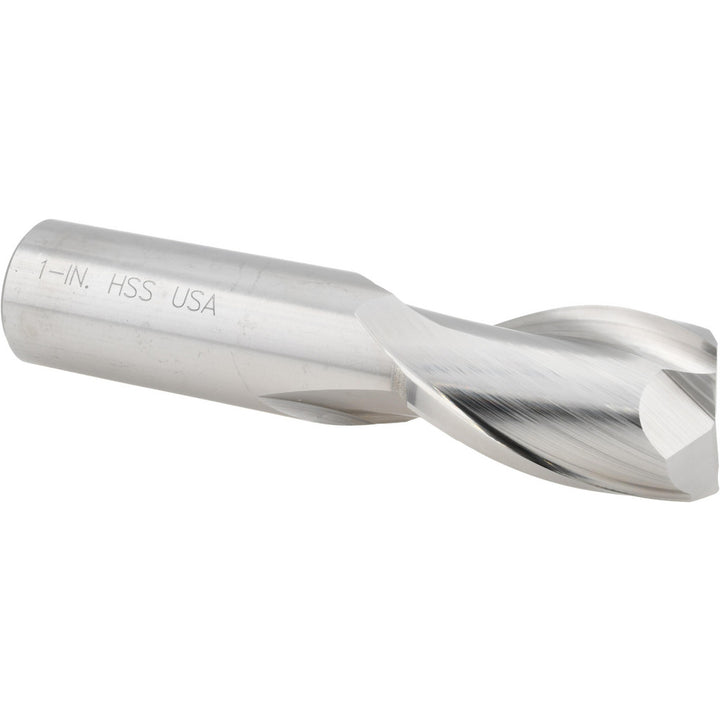

1" 2-Flute High Speed Steel Square End Mill - Cleveland C41643

MFR# C41643Series HG-2

$89.91List $115.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes2

MaterialHigh Speed Steel

CoatingBright/Uncoated

Description

The Cleveland C41643 is a 1 2-flute High Speed Steel square end mill. Suited for cast iron, aluminum & non-ferrous, steel. 1-1/2 length of cut, 4-1/8 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in1

Number of flutes2

Overall length in4-1/8

Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Steel

Shank diameter in7/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
