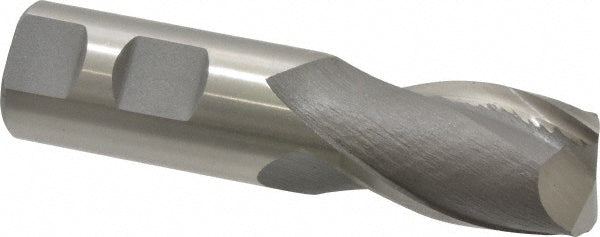

1" 2-Flute High Speed Steel Square End Mill - Cleveland C41644

Cleveland

1" 2-Flute High Speed Steel Square End Mill - Cleveland C41644

MFR# C41644Series HG-2

$108.86List $139.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes2
MaterialHigh Speed Steel

Description

The Cleveland C41644 is a 1 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-5/8 length of cut, 4-1/2 overall length. Series HG-2.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in1
Number of flutes2
Overall length in4-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
