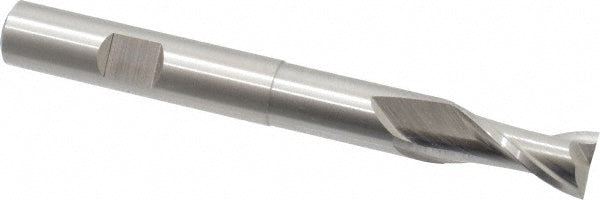

3/8" 2-Flute High Speed Steel Square End Mill - Cleveland C41777

Cleveland

3/8" 2-Flute High Speed Steel Square End Mill - Cleveland C41777

MFR# C41777Series HGN-2

$44.00List $56.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialHigh Speed Steel

Description

The Cleveland C41777 is a 3/8 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 3/4 length of cut, 3-5/16 overall length. Series HGN-2.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Mill diameter in3/8
Number of flutes2
Overall length in3-5/16
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Reach length in1-3/4
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
