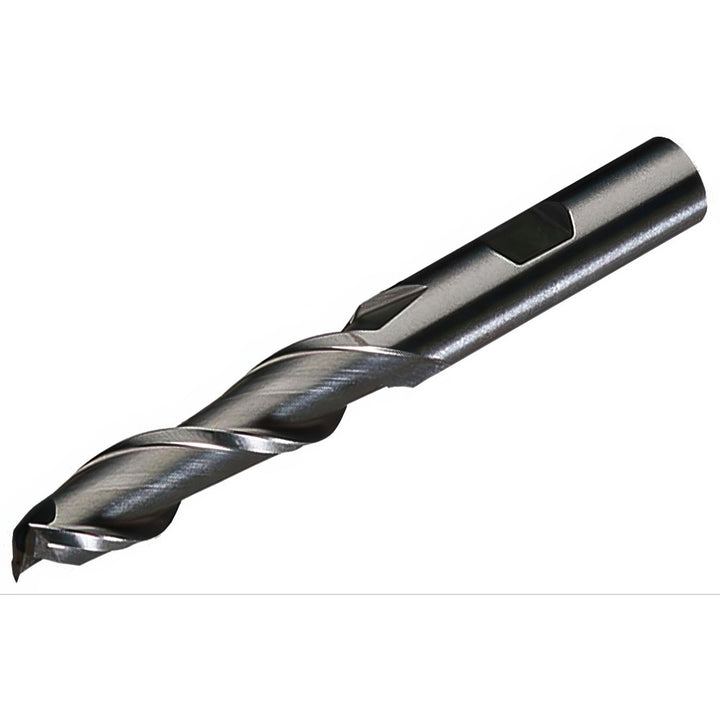

1/4" 2-Flute High Speed Steel Square End Mill - Cleveland C41843

Cleveland

1/4" 2-Flute High Speed Steel Square End Mill - Cleveland C41843

MFR# C41843Series HGA-2

$33.76List $43.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialHigh Speed Steel
CoatingBright/Uncoated

Description

The Cleveland C41843 is a 1/4 2-flute High Speed Steel square end mill. Suited for non-ferrous metal. 5/8 length of cut, 2-7/16 overall length. Series HGA-2.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in1/4
Number of flutes2
Overall length in2-7/16
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
