Cleveland

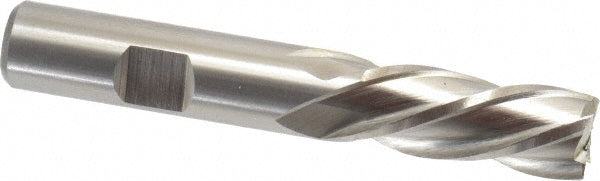

1/2" 4-Flute High Speed Steel Square End Mill - Cleveland C42306
MFR# C42306Series HG-4LL
$82.56List $105.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes4
MaterialHigh Speed Steel
Description
The Cleveland C42306 is a 1/2 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/4 length of cut, 3-1/4 overall length. Series HG-4LL.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionLeft Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionLeft Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Mill diameter in1/2
Number of flutes4
Overall length in3-1/4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
