Cleveland

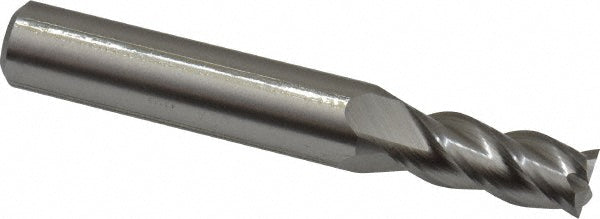

5/16" 4-Flute Powdered Metal Square End Mill - Cleveland C42506
MFR# C42506Series PM-4
$46.42List $59.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialPowdered Metal
Description
The Cleveland C42506 is a 5/16 4-flute Powdered Metal (M42) square end mill. 3/4 length of cut, 2-1/2 overall length. Series PM-4.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialPowdered Metal
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeM42
Mill diameter in5/16
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
