Cleveland

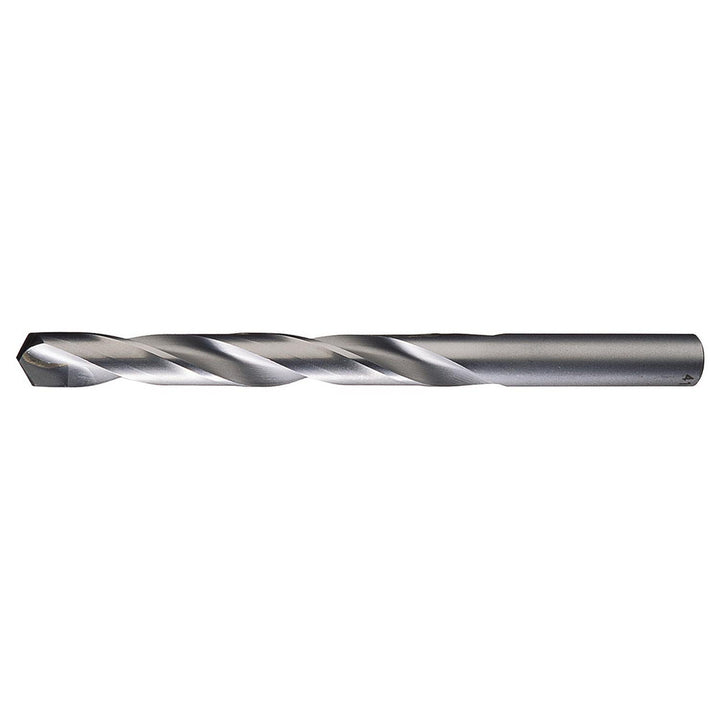

11/32" Carbide-Tipped Drill Bit, 118° point - Cleveland C48784
MFR# C48784
$54.06List $68.13
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Description
The Cleveland C48784 is a 11/32" Carbide-Tipped drill bit, 118° point. Suited for steel, cast iron.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit materialCarbide-Tipped
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length3.4380
Flute typeRegular Spiral
Maximum drilling depth3.4375
Overall length4.7500
Point type4 Facet
Primary workpiece materialSteel; Cast Iron
Shank diameter in11/32
Shank length1.3126
Shank typeStraight
Specification designationANSI
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
