Cleveland

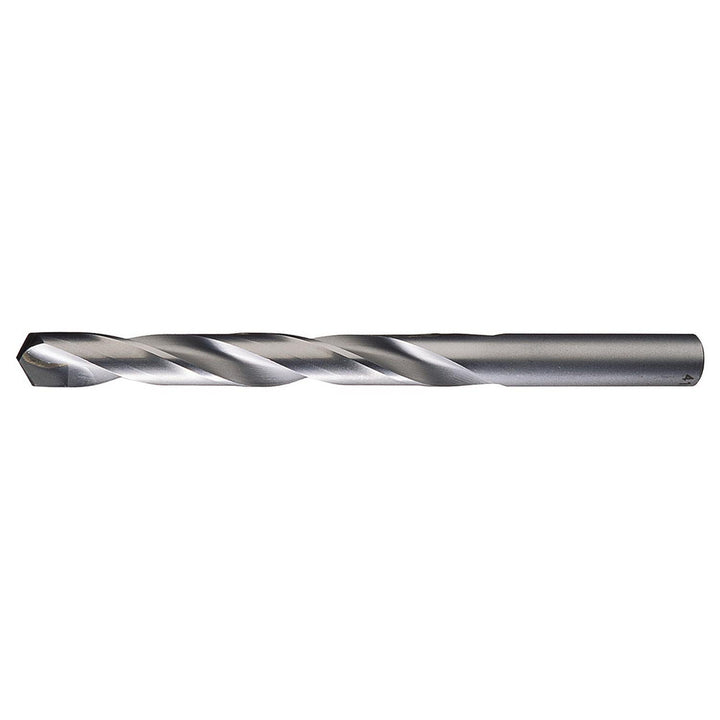

7/16" Carbide-Tipped Drill Bit, 118° point - Cleveland C48818
MFR# C48818
$65.87List $84.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Description
The Cleveland C48818 is a 7/16" Carbide-Tipped drill bit, 118° point. Suited for steel, cast iron.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit materialCarbide-Tipped
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute length4.0630
Flute typeRegular Spiral
Maximum drilling depth3.9375
Overall length5.5000
Point type4 Facet
Primary workpiece materialSteel; Cast Iron
Shank diameter in7/16
Shank length1.4374
Shank typeStraight
Specification designationANSI
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
