9/16" 2-Flute Cobalt Square End Mill - Cleveland C52164

Cleveland

9/16" 2-Flute Cobalt Square End Mill - Cleveland C52164

MFR# C52164Series HDC-2

$86.93List $111.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes2
MaterialCobalt

Description

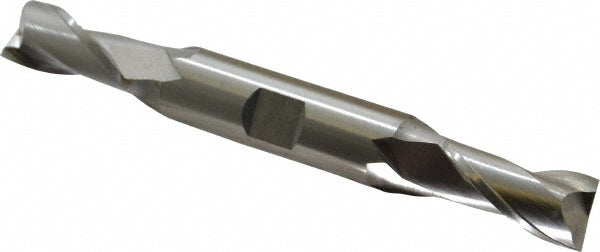

The Cleveland C52164 is a 9/16 2-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-1/8 length of cut, 5 overall length. Series HDC-2.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeM42
Mill diameter in9/16
Number of flutes2
Overall length in5
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in5/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
