Cleveland

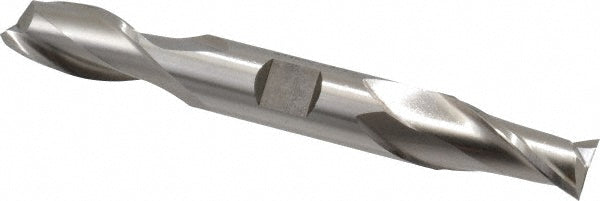

5/8" 2-Flute Cobalt Square End Mill - Cleveland C52165

MFR# C52165Series HDC-2

$94.19List $120.80 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialCobalt

Description

The Cleveland C52165 is a 5/8 2-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-1/8 length of cut, 5 overall length. Series HDC-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeM42

Mill diameter in5/8

Number of flutes2

Overall length in5

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
