Cleveland

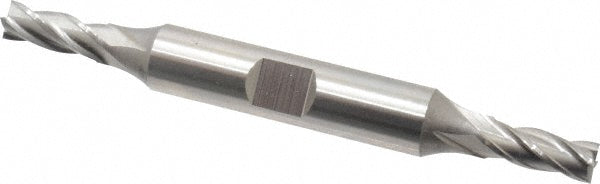

7/32" 4-Flute Cobalt Square End Mill - Cleveland C52173
MFR# C52173Series HDC-4C
$38.07List $48.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/32
Flutes4
MaterialCobalt
Description
The Cleveland C52173 is a 7/32 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 9/16 length of cut, 3-1/4 overall length. Series HDC-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeM42
Mill diameter in7/32
Number of flutes4
Overall length in3-1/4
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
