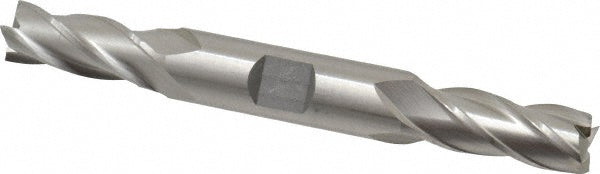

7/16" 4-Flute Cobalt Square End Mill - Cleveland C52180

Cleveland

7/16" 4-Flute Cobalt Square End Mill - Cleveland C52180

MFR# C52180Series HDC-4C

$52.82List $67.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialCobalt

Description

The Cleveland C52180 is a 7/16 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1 length of cut, 4-1/2 overall length. Series HDC-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeM42
Mill diameter in7/16
Number of flutes4
Overall length in4-1/2
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
