1/2" 4-Flute Cobalt Square End Mill - Cleveland C52182

Cleveland

1/2" 4-Flute Cobalt Square End Mill - Cleveland C52182

MFR# C52182Series HDC-4C

$53.46List $68.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialCobalt

Description

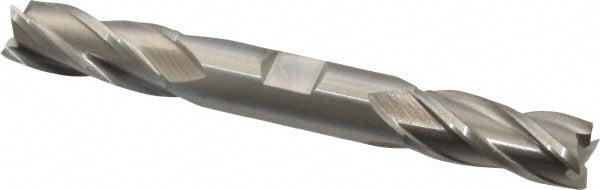

The Cleveland C52182 is a 1/2 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1 length of cut, 4-1/2 overall length. Series HDC-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeM42
Mill diameter in1/2
Number of flutes4
Overall length in4-1/2
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
