Cleveland

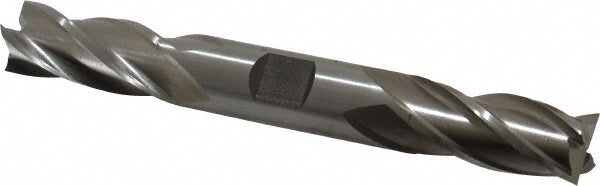

5/8" 4-Flute Cobalt Square End Mill - Cleveland C52184
MFR# C52184Series HDC-4C
$107.82List $138.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialCobalt
Description
The Cleveland C52184 is a 5/8 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-3/8 length of cut, 5 overall length. Series HDC-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/8
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeM42
Mill diameter in5/8
Number of flutes4
Overall length in5
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in5/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
