Cleveland

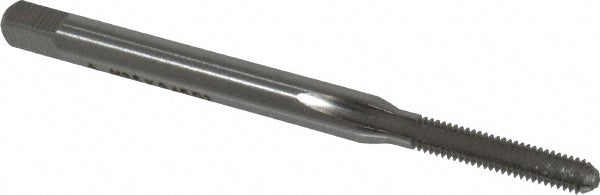

M2.5 x 0.45 Metric Coarse High Speed Steel Standard Tap - Cleveland C54133
MFR# C54133Series 1003
$18.67List $23.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Cleveland C54133 is a Metric Coarse High Speed Steel Standard tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit6H
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes3
Overall length1.8130
OversizeNo
Shank diameter0.1410
Square length in3/16
Square size0.1100
Tap typeStandard
Thread directionRight Hand
Thread length in1/2
Thread limitD3
Thread pitch (mm)0.45
Thread size (mm)M2.5 x 0.45
Thread standardMetric Coarse
