Cleveland

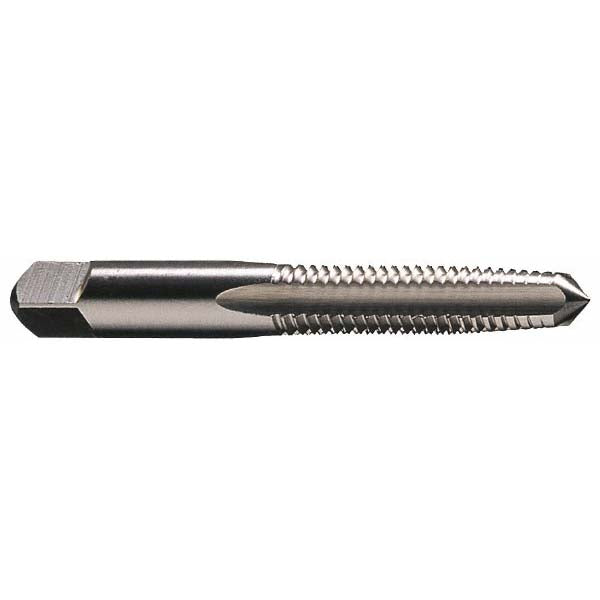

#5-44 UNF High Speed Steel Standard Tap - Cleveland C54192
MFR# C54192Series 1001
$12.63List $16.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-44
Description
The Cleveland C54192 is a #5-44 UNF High Speed Steel Standard tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes3
Overall length1.9380
OversizeNo
Shank diameter0.1410
Square length in3/16
Square size0.1100
Tap typeStandard
Threads per inch44
Thread directionRight Hand
Thread length0.3100
Thread limitH2
Thread size in#5-44
Thread standardUNF
