Cleveland

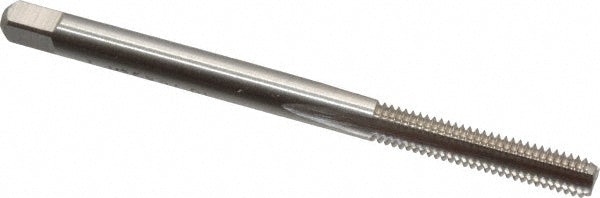

M3.5 x 0.60 Metric Coarse High Speed Steel Standard Tap - Cleveland C54205
MFR# C54205Series 1003
$12.89List $16.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Cleveland C54205 is a Metric Coarse High Speed Steel Standard tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit6H
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes3
Overall length in2
OversizeNo
Shank diameter0.1410
Square length in3/16
Square size0.1100
Tap typeStandard
Thread directionRight Hand
Thread length0.3800
Thread limitD4
Thread pitch (mm)0.60
Thread size (mm)M3.5 x 0.60
Thread standardMetric Coarse
