Cleveland

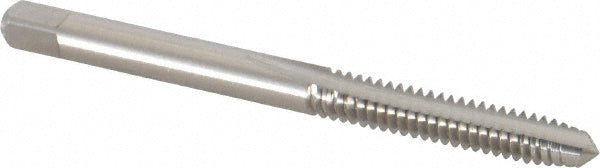

#10-24 UNC High Speed Steel Standard Tap - Cleveland C54318
MFR# C54318Series 1002
$16.57List $21.24
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-24
Description
The Cleveland C54318 is a #10-24 UNC High Speed Steel Standard tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes2
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square length in1/4
Square size0.1520
Tap typeStandard
Threads per inch24
Thread directionRight Hand
Thread length in1/2
Thread limitH2
Thread size in#10-24
Thread standardUNC
