Cleveland

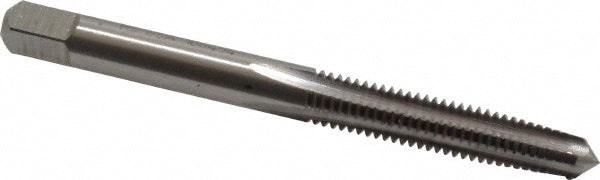

#12-28 UNF High Speed Steel Standard Tap - Cleveland C54389
MFR# C54389Series 1001
$11.03List $14.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#12-28
Description
The Cleveland C54389 is a #12-28 UNF High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit2B; 3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.2200
Square length0.2812
Square size0.1650
Tap typeStandard
Threads per inch28
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread size in#12-28
Thread standardUNF
