Cleveland

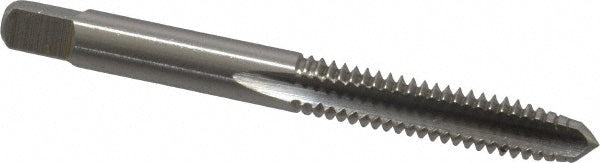

1/4-20 UNC High Speed Steel Standard Tap - Cleveland C54458
MFR# C54458Series 1002
$12.24List $15.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
Description
The Cleveland C54458 is a 1/4-20 UNC High Speed Steel Standard tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square length in5/16
Square size0.1910
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length0.6300
Thread limitH3
Thread size in1/4-20
Thread standardUNC
