Cleveland
5/16-18 UNC High Speed Steel Standard Tap - Cleveland C54504
MFR# C54504Series 1001
$12.63List $16.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-18
Description

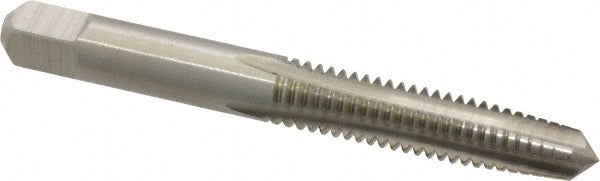

The Cleveland C54504 is a 5/16-18 UNC High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length2.7190
OversizeNo
Shank diameter0.3180
Square length in3/8
Square size0.2380
Tap typeStandard
Threads per inch18
Thread directionRight Hand
Thread length0.6900
Thread limitH3
Thread size in5/16-18
Thread standardUNC
