Cleveland
7/16-20 UNF High Speed Steel Standard Tap - Cleveland C54662
MFR# C54662Series 1002
$24.50List $31.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/16-20
Description

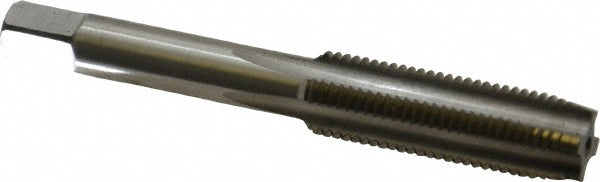

The Cleveland C54662 is a 7/16-20 UNF High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length3.1560
OversizeNo
Shank diameter0.3230
Square length0.4062
Square size0.2420
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length0.8800
Thread limitH3
Thread size in7/16-20
Thread standardUNF
