Cleveland

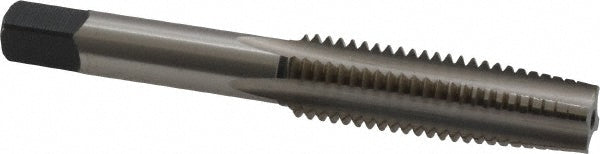

M12 x 1.75 Metric Coarse High Speed Steel Standard Tap - Cleveland C54689
MFR# C54689Series 1001
$32.86List $42.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Cleveland C54689 is a Metric Coarse High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit6H
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length in7/16
Square size0.2750
Tap typeStandard
Thread directionRight Hand
Thread length1.6600
Thread limitD6
Thread pitch (mm)1.75
Thread size (mm)M12 x 1.75
Thread standardMetric Coarse
