Cleveland

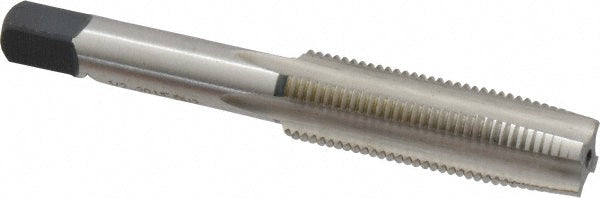

1/2-20 UNF High Speed Steel Standard Tap - Cleveland C54737
MFR# C54737Series 1001
$28.93List $37.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/2-20
Description
The Cleveland C54737 is a 1/2-20 UNF High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square length in7/16
Square size0.2750
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length0.9400
Thread limitH3
Thread size in1/2-20
Thread standardUNF
