Cleveland

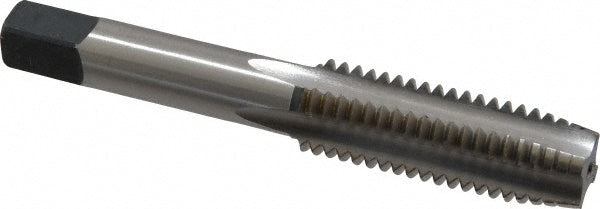

9/16-12 UNC High-Speed Steel Standard Tap - Cleveland C54760
MFR# C54760Series 1002
$43.78List $56.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-12
Description
The Cleveland C54760 is a 9/16-12 UNC High-Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length3.5940
OversizeNo
Shank diameter0.4290
Square length in1/2
Square size0.3220
Tap typeStandard
Threads per inch12
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in9/16-12
Thread standardUNC
