Cleveland

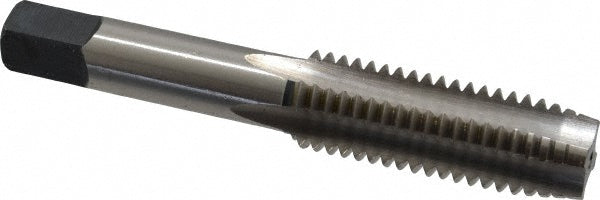

5/8-11 UNC High Speed Steel Standard Tap - Cleveland C54783
MFR# C54783Series 1002
$60.40List $77.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
Description
The Cleveland C54783 is a 5/8-11 UNC High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length3.8130
OversizeNo
Shank diameter0.4800
Square length in9/16
Square size0.3600
Tap typeStandard
Threads per inch11
Thread directionRight Hand
Thread length1.0900
Thread limitH5
Thread size in5/8-11
Thread standardUNC
