Cleveland

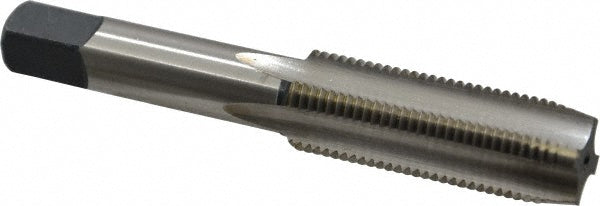

M16 x 1.50 Metric Fine High Speed Steel Standard Tap - Cleveland C54798
MFR# C54798Series 1002
$61.12List $78.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Cleveland C54798 is a Metric Fine High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit6H
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length3.8130
OversizeNo
Shank diameter0.4800
Square length in9/16
Square size0.3600
Tap typeStandard
Thread directionRight Hand
Thread length1.8100
Thread limitD6
Thread pitch (mm)1.50
Thread size (mm)M16 x 1.50
Thread standardMetric Fine
