Cleveland

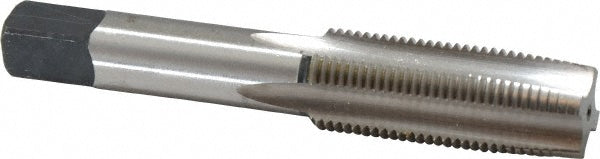

11/16-16 UNF High Speed Steel Standard Tap - Cleveland C54817
MFR# C54817Series 1001
$65.27List $83.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size11/16-16
Description
The Cleveland C54817 is a 11/16-16 UNF High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit2B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length4.0310
OversizeNo
Shank diameter0.5420
Square length in5/8
Square size0.4060
Tap typeStandard
Threads per inch16
Thread directionRight Hand
Thread length1.0900
Thread limitH3
Thread size in11/16-16
Thread standardUNF
