Cleveland

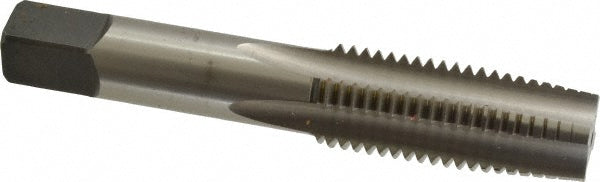

M20 x 2.50 Metric Coarse High Speed Steel Standard Tap - Cleveland C54864
MFR# C54864Series 1001
$111.54List $143.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Cleveland C54864 is a Metric Coarse High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit6H
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length4.4690
OversizeNo
Shank diameter0.6520
Square length in11/16
Square size0.4890
Tap typeStandard
Thread directionRight Hand
Thread length in2
Thread limitD7
Thread pitch (mm)2.50
Thread size (mm)M20 x 2.50
Thread standardMetric Coarse
