Cleveland

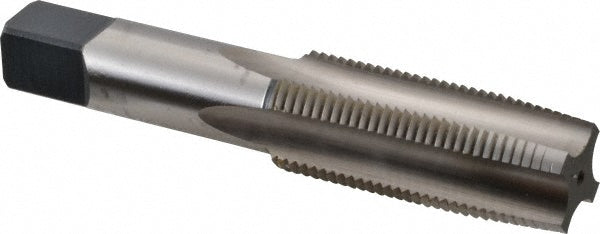

1-12 UNF High Speed Steel Standard Tap - Cleveland C54928
MFR# C54928Series 1001
$140.54List $180.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-12
Description
The Cleveland C54928 is a 1-12 UNF High Speed Steel Standard tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in5-1/8
OversizeNo
Shank diameter0.8000
Square length in13/16
Square size0.6000
Tap typeStandard
Threads per inch12
Thread directionRight Hand
Thread length in2-1/2
Thread limitH4
Thread size in1-12
Thread standardUNF
