Cleveland

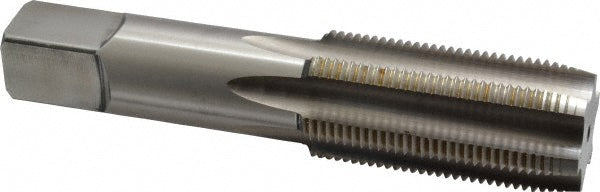

1-1/4-12 UNF High Speed Steel Standard Tap - Cleveland C55001
MFR# C55001Series 1002
$294.31List $377.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size1-1/4-12
Description
The Cleveland C55001 is a 1-1/4-12 UNF High Speed Steel Standard tap. 6 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes6
Overall length in5-3/4
OversizeNo
Shank diameter1.0210
Square length in1
Square size0.7660
Tap typeStandard
Threads per inch12
Thread directionRight Hand
Thread length2.5600
Thread limitH4
Thread size in1-1/4-12
Thread standardUNF
