Cleveland

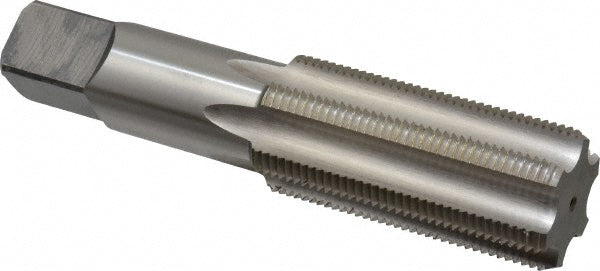

1-3/8-12 UNF High Speed Steel Standard Tap - Cleveland C55032
MFR# C55032Series 1003
$365.89List $469.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size1-3/8-12
Description
The Cleveland C55032 is a 1-3/8-12 UNF High Speed Steel Standard tap. 6 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes6
Overall length in5-3/4
OversizeNo
Shank diameter1.1080
Square length in1-1/16
Square size0.8310
Tap typeStandard
Thread directionRight Hand
Thread length in3
Thread limitH4
Thread size in1-3/8-12
Thread standardUNF
