Cleveland

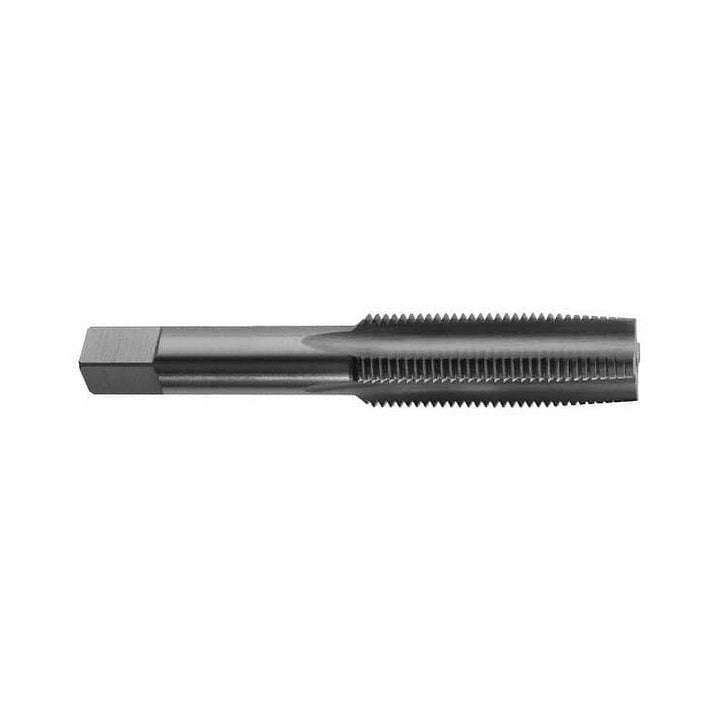

1-1/2-12 UNF High Speed Steel Standard Tap - Cleveland C55063
MFR# C55063Series 1001
$427.29List $548.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size1-1/2-12
Description
The Cleveland C55063 is a 1-1/2-12 UNF High Speed Steel Standard tap. 6 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes6
Overall length in6-3/8
OversizeNo
Shank diameter1.2330
Square length in1-1/8
Square size0.9250
Tap typeStandard
Threads per inch12
Thread directionRight Hand
Thread length in3
Thread limitH4
Thread size in1-1/2-12
Thread standardUNF
