Cleveland
#12-28 UNF High Speed Steel Standard Tap, TiN - Cleveland C55114
MFR# C55114Series 1002TN
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#12-28
CoatingTiN
Description

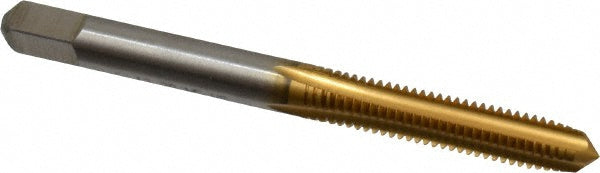

The Cleveland C55114 is a #12-28 UNF High Speed Steel Standard tap with a TiN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferPlug
Class of fit2B; 3B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.2200
Square length0.2812
Square size0.1650
Tap typeStandard
Threads per inch28
Thread directionRight Hand
Thread length in15/16
Thread limitH3
Thread size in#12-28
Thread standardUNF
